Understanding Standard vs Extended ACLs

Access Control Lists (ACLs) are one of the fundamental mechanisms used to control network traffic.

An ACL defines rules that determine whether traffic should be:

• Permitted
• Denied
• Classified
• Logged
• Processed by another networking function

In Cisco networking, two of the most important IPv4 ACL categories are:

• Standard ACL
• Extended ACL

The fundamental difference is the amount of information each ACL can use when matching traffic.

Standard ACL

Primarily identifies traffic using the source IPv4 address.

Extended ACL

Can identify traffic using source address, destination address, protocol, and supported Layer 4 information such as TCP or UDP ports.

This makes Extended ACLs much more granular.

Understanding Standard and Extended ACLs

Consider the following network:

• Employee Network: 192.168.10.0/24
• Guest Network: 192.168.20.0/24
• Server Network: 10.10.10.0/24
• Web Server: 10.10.10.10
• SSH Server: 10.10.10.20

Standard ACL

A Cisco Standard IPv4 ACL primarily matches traffic according to the source IPv4 address.

Think of it as asking:

WHO is sending the traffic?

For example:

192.168.10.25 → 10.10.10.10

A Standard ACL can identify:

Source = 192.168.10.25

But it cannot provide the same filtering granularity based on:

• Destination address
• TCP destination port
• UDP destination port
• Specific IP protocol

as an Extended ACL.

A simple Standard ACL could say:

Permit traffic originating from 192.168.10.0/24.

However, it cannot express the complete policy:

Permit 192.168.10.0/24 only to 10.10.10.10 using HTTPS.

That requires additional matching information.

Extended ACL

A Cisco Extended IPv4 ACL provides much more granular traffic identification.

Think of it as asking:

WHO is communicating with WHOM using WHAT protocol or service?

An Extended ACL can evaluate information such as:

Source + Destination + Protocol + Port

For example:

192.168.10.25 → 10.10.10.10 → TCP/443

An Extended ACL can identify all of these elements.

This means you can create a policy such as:

Permit employees to access the Web Server using HTTPS but deny SSH access to that server.

Easy Way to Remember

Standard ACL

Think:

SOURCE

Extended ACL

Think:

SOURCE → DESTINATION → PROTOCOL → PORT

Side-by-Side Comparison

Cisco Standard ACL — Detailed Example

Suppose the requirement is:

Allow Employee Network 192.168.10.0/24 to reach a protected server network while preventing other source networks from using that path.

The decision is based only on the source network.

A Standard ACL can handle this requirement.

Create the Standard ACL

access-list 10 permit 192.168.10.0 0.0.0.255
access-list 10 deny any

The first statement:

access-list 10 permit 192.168.10.0 0.0.0.255

means:

Permit packets whose source IPv4 address belongs to 192.168.10.0/24.

The wildcard mask:

0.0.0.255

matches the /24 network.

The second statement:

access-list 10 deny any

denies other source addresses.

Apply the Standard ACL

Assume GigabitEthernet0/2 leads toward the protected server network.

interface GigabitEthernet0/2
 ip access-group 10 out

Conceptually:

Employee Network → Router → Standard ACL → Server Network

What Happens to the Traffic?

Notice the important limitation.

The Standard ACL knows:

192.168.10.25 is an allowed source.

It does not know that we might want the employee to use HTTPS but not SSH.

Why Standard ACL Cannot Solve a More Specific Requirement

Suppose the actual security requirement changes to:

Employees may access 10.10.10.10 using HTTPS only.

Now we need to identify:

Source: 192.168.10.0/24

Destination: 10.10.10.10

Protocol: TCP

Destination Port: 443

A Standard ACL cannot express all of these criteria.

We need an Extended ACL.

Cisco Extended ACL — Detailed Example

Now consider this more realistic security requirement.

Employees from:

192.168.10.0/24

should be allowed to access:

10.10.10.10

using:

• HTTP — TCP/80
• HTTPS — TCP/443

Employees should not be allowed to SSH to that Web Server.

The Guest Network:

192.168.20.0/24

should not be allowed to access the protected Web Server.

This requires granular matching.

Create a Named Extended ACL

ip access-list extended WEB_SERVER_ACCESS

Permit HTTP

permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 80

This means:

Action: Permit

Protocol: TCP

Source: 192.168.10.0/24

Destination: 10.10.10.10

Destination Port: 80

Permit HTTPS

permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 443

This permits HTTPS access from employees to the Web Server.

Deny Other Traffic to the Web Server

deny ip any host 10.10.10.10

The complete ACL becomes:

ip access-list extended WEB_SERVER_ACCESS
 permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 80
 permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 443
 deny ip any host 10.10.10.10

Apply the Extended ACL

Because Extended ACLs can precisely identify unwanted traffic, they are traditionally placed relatively close to the source.

For example:

interface GigabitEthernet0/0
 ip access-group WEB_SERVER_ACCESS in

Traffic Results

This is the major advantage of an Extended ACL.

Instead of simply saying:

“Trust this source network.”

you can say:

“Allow this source network to communicate with this specific destination using only these specific services.”

What About the Implicit Deny?

Cisco ACLs have an implicit deny at the end.

Conceptually:

deny ip any any

Therefore, anything not explicitly permitted before reaching the end of the ACL is denied.

How Other Vendors Handle Similar Filtering

This is where terminology becomes important.

Cisco Standard ACL and Extended ACL should not be treated as universal networking terminology.

Other vendors often provide equivalent or more advanced filtering capabilities using different policy models.

Cisco

Cisco provides explicit Standard and Extended IPv4 ACL categories.

A simplified comparison is:

Standard

Source → Action

Extended

Source → Destination → Protocol → Port → Action

Cisco IOS/IOS XE also supports additional ACL capabilities depending on platform and software.

Juniper Networks

Juniper Junos commonly uses firewall filters for stateless packet filtering.

A Junos firewall filter can use match conditions involving information such as:

• Source address
• Destination address
• Protocol
• Source port
• Destination port

Conceptually, this is closer to the flexibility associated with a Cisco Extended ACL.

A simplified Junos-style example could look like:

firewall {
    family inet {
        filter WEB_SERVER_ACCESS {
            term ALLOW_HTTPS {
                from {
                    source-address {
                        192.168.10.0/24;
                    }
                    destination-address {
                        10.10.10.10/32;
                    }
                    protocol tcp;
                    destination-port 443;
                }
                then accept;
            }
            term DEFAULT_DENY {
                then discard;
            }
        }
    }
}

The policy concept is:

Source: 192.168.10.0/24

Destination: 10.10.10.10

Protocol: TCP

Destination Port: 443

Action: Accept

Fortinet FortiGate

FortiGate normally controls routed traffic using firewall policies, rather than asking the administrator to choose between a Cisco-style Standard or Extended ACL.

A FortiGate policy commonly considers criteria such as:

• Incoming interface
• Outgoing interface
• Source
• Destination
• Schedule
• Service
• Action

For our example, the conceptual policy would be:

Source: Employee Network

Destination: Web Server

Service: HTTPS

Action: ACCEPT

A simplified configuration concept could be:

config firewall policy
    edit 10
        set name "Employee-to-Web-HTTPS"
        set srcintf "LAN"
        set dstintf "SERVER"
        set srcaddr "Employee_Network"
        set dstaddr "Web_Server"
        set action accept
        set schedule "always"
        set service "HTTPS"
    next
end

Conceptually, this provides the granular policy behavior that someone familiar with Cisco might associate with an Extended ACL.

However, FortiGate firewall policies are part of a stateful firewall architecture and should not simply be renamed “Extended ACLs.”

Palo Alto Networks

Palo Alto Networks uses Security policy rules.

Security rules can evaluate information such as:

• Source zone
• Destination zone
• Source address
• Destination address
• User
• Application
• Service

Therefore, Palo Alto Networks policy goes significantly beyond the simple Standard-vs-Extended ACL model.

For our web-server requirement, the conceptual rule could be:

Source Zone: USERS

Source Address: 192.168.10.0/24

Destination Zone: SERVERS

Destination Address: 10.10.10.10

Application: web-browsing / ssl as appropriate to the policy design

Service: Application-default or specifically required service

Action: Allow

Multi-Vendor Comparison

Practical Comparison and Troubleshooting

Consider the requirement:

Employees should access Web Server 10.10.10.10 using HTTPS only.

Cisco Standard ACL Approach

A Standard ACL can identify:

192.168.10.0/24

but cannot independently specify all of:

10.10.10.10 + TCP + 443

Therefore, it is not the appropriate tool for implementing this precise requirement by itself.

Cisco Extended ACL Approach

An Extended ACL can express:

permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 443

This is a precise match.

Juniper Approach

Conceptually:

Source 192.168.10.0/24 + Destination 10.10.10.10 + TCP + Destination Port 443 → Accept

FortiGate Approach

Conceptually:

Employee Network + Web Server + HTTPS → ACCEPT

Palo Alto Networks Approach

Conceptually:

User Zone + Server Zone + Employee Source + Web Server Destination + Approved Application/Service → ALLOW

The security objective is similar.

The implementation model is different.

Rule Order Matters

Cisco ACLs are processed sequentially.

The first matching ACE determines the result.

For example:

deny ip any any
permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 443

This does not permit HTTPS.

The first rule already matches IP traffic and denies it.

Correct the order:

permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 443
deny ip any any

Verify Cisco ACLs

Display ACLs:

show access-lists

Display IPv4 ACLs:

show ip access-lists

Check interface ACL assignment:

show ip interface GigabitEthernet0/0

Common Mistakes

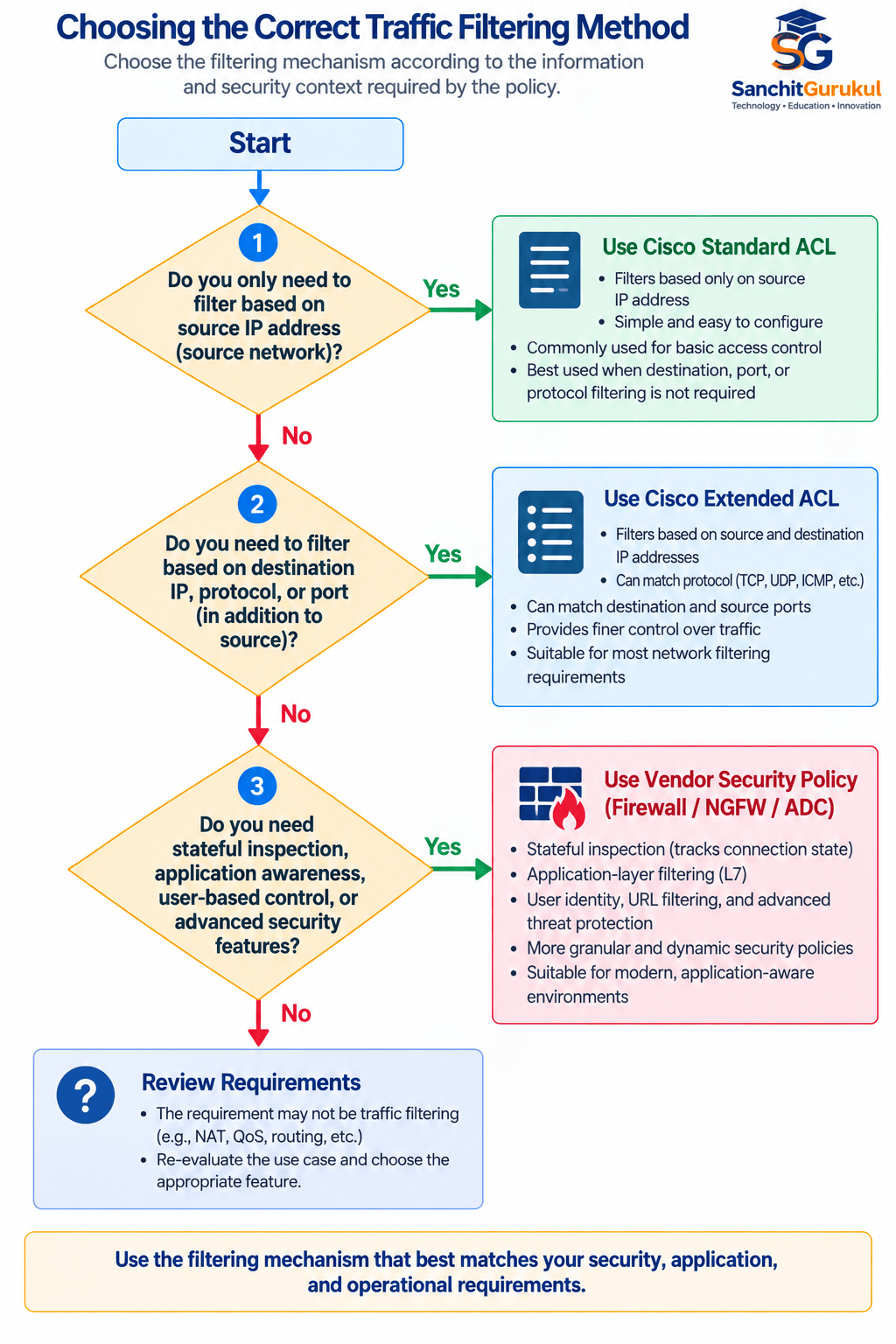

Choosing the Correct ACL or Policy Type

The decision becomes easier when you start with the security requirement.

Use a Cisco Standard ACL When

The decision primarily depends on:

Source IPv4 address

Examples:

• Permit one management subnet
• Deny one source network
• Identify a source network for a supported feature
• Implement simple source-based filtering

Use a Cisco Extended ACL When

The decision depends on combinations such as:

• Source
• Destination
• Protocol
• TCP port
• UDP port
• ICMP information

Examples:

Allow HTTPS but deny SSH

Allow DNS to a particular DNS server

Allow one subnet to communicate with a specific server

Block a protocol between two networks

Use Vendor Security Policy When

On modern NGFW platforms, use the vendor’s native policy architecture.

For example:

FortiGate → Firewall Policy

Palo Alto Networks → Security Policy

Juniper SRX → Security Policy for stateful firewall security use cases

Junos Firewall Filter → Stateless packet filtering/classification use cases

Summary

The fundamental difference between Cisco Standard and Extended ACLs is traffic-matching granularity.

Standard ACL

Think:

SOURCE

A Cisco Standard IPv4 ACL primarily identifies traffic using the source IPv4 address.

It is useful for relatively simple source-based filtering.

Extended ACL

Think:

SOURCE → DESTINATION → PROTOCOL → PORT

An Extended ACL provides much more granular traffic control.

For example:

permit tcp 192.168.10.0 0.0.0.255 host 10.10.10.10 eq 443

This expresses a specific security relationship:

Employee Network → Web Server → TCP → HTTPS → Permit

Final Comparison
