Wireshark Display Filters Explained: Syntax, Real Examples and Troubleshooting Guide

---

Wireshark can capture thousands of packets within seconds. On a busy network, finding the packets related to a particular problem can quickly become difficult.

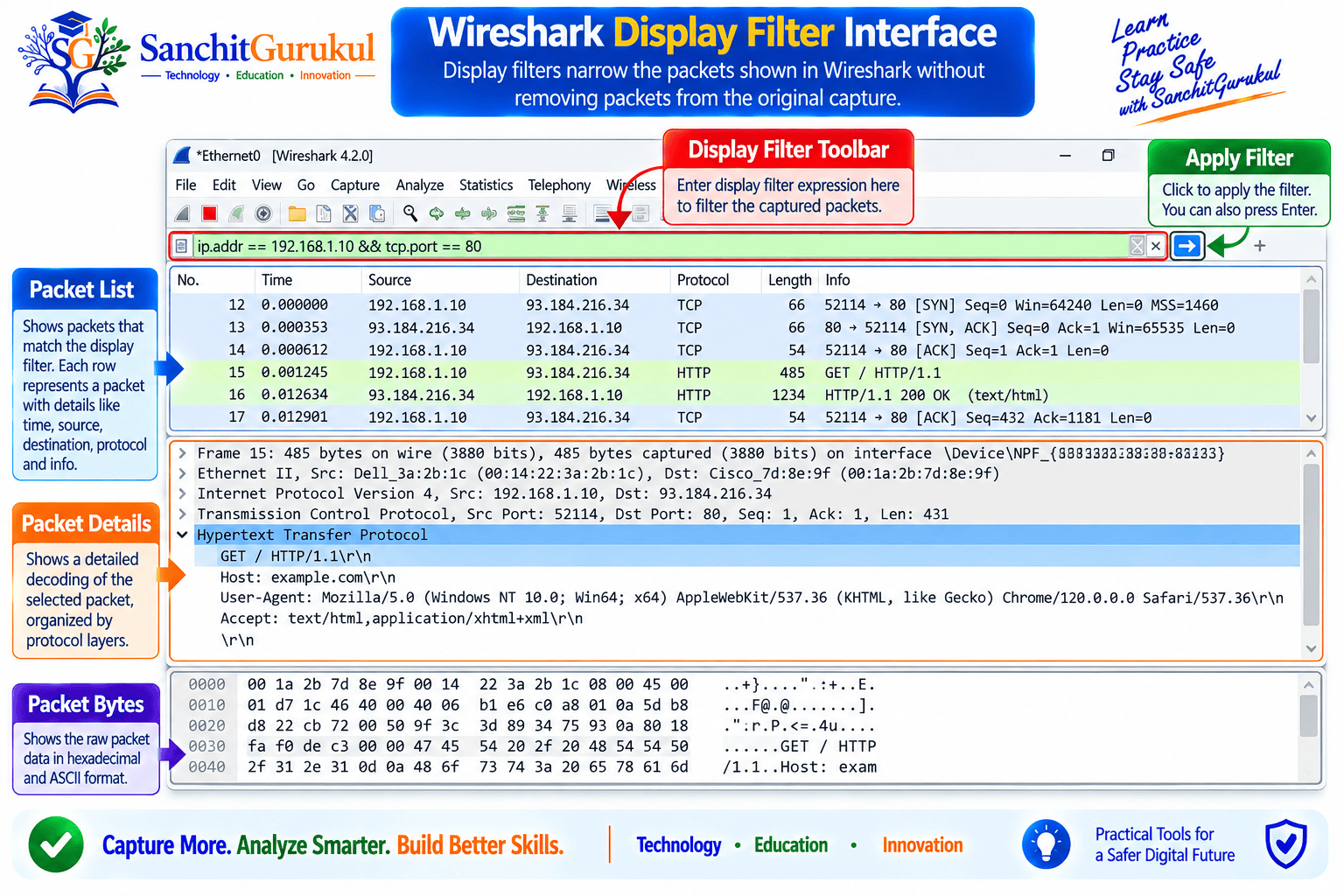

Wireshark display filters solve this problem by allowing you to narrow the packets currently shown without removing anything from the original capture.

Display filters can help you isolate:

• A specific client or server
• TCP or UDP traffic
• Particular ports
• TCP connection problems
• DNS queries and failures
• HTTP requests
• TLS handshakes
• QUIC traffic
• SIP and RTP traffic
• Packet-size conditions

The important concept is simple:

A display filter changes what Wireshark displays. It does not change the packets stored in the capture file.

---

Capture Filters vs Display Filters

Wireshark supports both capture filters and display filters, but they perform different jobs and use different syntax.

Capture Filter Example

A capture filter for TCP port 443 is:

tcp port 443

Packets that do not match the capture filter are not captured.

Display Filter Example

The display-filter equivalent is:

tcp.port == 443

The other captured packets remain in the capture file. Wireshark simply hides them from the current view.

For short troubleshooting captures, capturing broadly and filtering later can preserve valuable context.

For very busy networks, long-running captures, privacy-sensitive environments, or systems with limited storage, a carefully selected capture filter may be necessary.

---

How Wireshark Display Filter Syntax Works

A display filter can be as simple as a protocol name.

Show TCP:

tcp

Show UDP:

udp

Show DNS:

dns

Show TLS:

tls

You can also filter using protocol fields.

For example:

ip.addr == 192.168.1.10

This shows IPv4 packets where 192.168.1.10 appears as the source or destination address.

Combine conditions with logical operators:

ip.addr == 192.168.1.10 && tcp.port == 443

This limits the display to TCP port 443 traffic associated with that host.

Common Operators

Logical Operators

Wireshark supports:

and

or

not

It also supports the familiar alternatives:

&&

||

!

For example:

dns && ip.addr == 192.168.1.10

Use Parentheses for Complex Filters

For example:

ip.addr == 192.168.1.10 && (tcp.port == 80 || tcp.port == 443)

This shows TCP port 80 or 443 traffic associated with the specified host.

Use in for Multiple Values

Instead of:

tcp.port == 80 || tcp.port == 443 || tcp.port == 8080

you can use:

tcp.port in {80, 443, 8080}

---

Essential Wireshark Display Filters

IP Address Filters

All IPv4 traffic involving a host:

ip.addr == 192.168.1.10

Traffic sourced from the host:

ip.src == 192.168.1.10

Traffic destined for the host:

ip.dst == 192.168.1.10

Traffic between two hosts:

ip.addr == 192.168.1.10 && ip.addr == 10.10.10.20

Exclude a host:

!(ip.addr == 192.168.1.10)

Traffic involving a subnet:

ip.addr == 192.168.10.0/24

IPv6 Filters

Show IPv6 traffic:

ipv6

Traffic involving a specific IPv6 address:

ipv6.addr == 2001:db8::10

---

TCP Filters

Show all TCP:

tcp

TCP port 443:

tcp.port == 443

Destination port 443:

tcp.dstport == 443

Source port 443:

tcp.srcport == 443

Multiple TCP ports:

tcp.port in {22, 80, 443, 8443}

Initial TCP SYN

Show SYN packets that are not SYN-ACK packets:

tcp.flags.syn == 1 && tcp.flags.ack == 0

This is useful for locating TCP connection attempts.

SYN-ACK

tcp.flags.syn == 1 && tcp.flags.ack == 1

TCP Reset

tcp.flags.reset == 1

A reset can indicate a refused, aborted, or unexpectedly terminated TCP connection.

However, a RST packet alone does not explain why the connection was reset.

TCP FIN

tcp.flags.fin == 1

Suspected TCP Retransmissions

tcp.analysis.retransmission

Fast retransmissions:

tcp.analysis.fast_retransmission

Duplicate ACKs:

tcp.analysis.duplicate_ack

Out-of-order packets:

tcp.analysis.out_of_order

Zero-window conditions:

tcp.analysis.zero_window

Isolate One TCP Stream

If you know the TCP stream number:

tcp.stream == 5

This is one of the most useful filters for isolating a single TCP conversation from a busy capture.

---

UDP and QUIC Filters

Show all UDP:

udp

UDP port 53:

udp.port == 53

UDP port 443:

udp.port == 443

Where Wireshark successfully identifies QUIC:

quic

---

DNS Filters

Show all DNS:

dns

DNS queries:

dns.flags.response == 0

DNS responses:

dns.flags.response == 1

Query for a specific domain:

dns.qry.name == "www.example.com"

Search for part of a domain:

dns.qry.name contains "example.com"

Responses with a non-zero response code:

dns.flags.response == 1 && dns.flags.rcode != 0

SERVFAIL:

dns.flags.response == 1 && dns.flags.rcode == 2

NXDOMAIN:

dns.flags.response == 1 && dns.flags.rcode == 3

---

HTTP Filters

Show HTTP:

http

HTTP requests:

http.request

GET requests:

http.request.method == "GET"

POST requests:

http.request.method == "POST"

GET or HEAD requests:

http.request.method in {"GET", "HEAD"}

Requests for a specific host:

http.host == "www.example.com"

URI containing /api/:

http.request.uri contains "/api/"

Specific URI path:

http.request.uri.path == "/health"

For HTTP/2 traffic recognized by Wireshark:

http2

For HTTP/3 traffic successfully dissected by Wireshark:

http3

---

TLS Filters

Show TLS:

tls

TLS handshake traffic:

tls.handshake

Client Hello:

tls.handshake.type == 1

Server Hello:

tls.handshake.type == 2

TLS alerts:

tls.alert_message

Fatal TLS alerts:

tls.alert_message.level == 2

TLS traffic involving a particular IPv4 host:

tls && ip.addr == 192.168.1.10

---

ICMP Filters

IPv4 ICMP:

icmp

IPv6 ICMP:

icmpv6

IPv4 Destination Unreachable:

icmp.type == 3

IPv4 Time Exceeded:

icmp.type == 11

ICMP and ICMPv6 are important when troubleshooting:

• Routing
• Traceroute
• Reachability
• Firewall behavior
• MTU
• Path MTU Discovery

---

ARP Filters

Show ARP:

arp

Filter an IPv4 protocol address in ARP:

arp.addr.proto_ipv4 == 192.168.1.1

ARP analysis can help investigate:

• Duplicate IPv4 addresses
• ARP resolution failures
• Default-gateway resolution
• Unexpected MAC-address changes

---

DHCP Filters

A useful starting point is:

dhcp

Field availability can vary with Wireshark version and packet decoding.

If a filter does not behave as expected, select a DHCP packet and build the filter directly from the decoded Packet Details.

---

SIP and RTP Filters

Show SIP:

sip

Specific SIP Call-ID:

sip.Call-ID == "example-call-id"

Show RTP:

rtp

---

Packet Size Filters

Frames larger than 1500 bytes:

frame.len > 1500

Frames smaller than 64 bytes:

frame.len < 64

Be careful when analyzing packet size on endpoint captures because NIC features such as segmentation and receive offloading can affect how packets appear in the capture.

---

Using contains

Example:

http.host contains "example"

Another example:

sip.To contains "1001"

Using matches

Example:

http.host matches "example.(com|org)"

Regular expressions are powerful, but simple equality or contains filters are often easier to read and maintain.

---

Real-World Troubleshooting Examples

Scenario 1 — Slow Website or Application

Suppose a user at 192.168.1.25 reports slow access to a server at 203.0.113.20.

Start by isolating communication between them:

ip.addr == 192.168.1.25 && ip.addr == 203.0.113.20

Look for suspected retransmissions:

tcp.analysis.retransmission

Check duplicate ACKs:

tcp.analysis.duplicate_ack

Check zero-window conditions:

tcp.analysis.zero_window

Then correlate:

• TCP handshake time
• Round-trip time
• Retransmissions
• Receive-window behavior
• DNS response time
• TLS establishment
• Application response time

---

Scenario 2 — TCP Connection Does Not Establish

Find initial SYN packets:

tcp.flags.syn == 1 && tcp.flags.ack == 0

Narrow the request to the affected client and destination port:

ip.addr == 192.168.1.25 && tcp.dstport == 443

Look for SYN-ACK:

tcp.flags.syn == 1 && tcp.flags.ack == 1

Look for reset:

tcp.flags.reset == 1

Possible observations include:

• SYN with no response
• SYN followed by RST
• SYN and SYN-ACK but no final ACK
• Repeated SYN attempts

---

Scenario 3 — DNS Resolution Failure

Start with:

dns

Show queries:

dns.flags.response == 0

Show responses with non-zero RCODE:

dns.flags.response == 1 && dns.flags.rcode != 0

SERVFAIL:

dns.flags.rcode == 2

NXDOMAIN:

dns.flags.rcode == 3

Search for the application domain:

dns.qry.name contains "example.com"

Investigate:

• Did the DNS query leave the client?
• Which DNS server received it?
• Was there a response?
• What response code was returned?
• Was the query repeated?
• Was a CNAME involved?
• Did the application query the expected hostname?

---

Scenario 4 — TLS Connection Failure

Start with:

tls.handshake

Find Client Hello:

tls.handshake.type == 1

Find Server Hello:

tls.handshake.type == 2

Find TLS alerts:

tls.alert_message

Look for TCP resets:

tcp.flags.reset == 1

---

Scenario 5 — VoIP Call Has Choppy Audio

Start by isolating SIP:

sip

Filter a specific Call-ID:

sip.Call-ID == "example-call-id"

Show RTP:

rtp

Then use:

Telephony → RTP → RTP Streams

Analyze the affected stream for:

• Packet loss
• Sequence errors
• Jitter
• Timing irregularities

Do not determine voice quality solely from the presence of RTP packets.

---

Scenario 6 — Investigating an Unknown External Connection

Suppose a device at 192.168.50.25 repeatedly communicates with an unfamiliar external IP.

Start with:

ip.addr == 192.168.50.25

Then narrow the conversation:

ip.addr == 192.168.50.25 && ip.addr == 203.0.113.50

Investigate:

• DNS lookups
• Destination ports
• Connection frequency
• TLS negotiation
• Cleartext application traffic, where available
• Connection duration
• Data-transfer patterns

---

A Practical Wireshark Troubleshooting Workflow

The most effective way to use display filters is to progressively narrow the capture.

Step 1 — Identify the Endpoint

Start with the affected client or server:

ip.addr == 192.168.1.25

Step 2 — Identify the Protocol

Examples:

dns

tcp

tls

quic

Step 3 — Isolate the Conversation

For TCP:

tcp.stream == 5

Or isolate two endpoints:

ip.addr == 192.168.1.25 && ip.addr == 10.10.10.20

Step 4 — Analyze the Transport

Check for resets:

tcp.flags.reset == 1

Check suspected retransmissions:

tcp.analysis.retransmission

Check zero-window conditions:

tcp.analysis.zero_window

Step 5 — Analyze the Application

Examples:

dns

http.request

tls.handshake

sip

Step 6 — Correlate Direction and Time

Ask:

• Which endpoint sent the packet?
• What happened immediately before it?
• What response followed?
• Was there an unusual delay?
• Did the behavior repeat?

Step 7 — Save Useful Filters

Save frequently used display filters for:

• TCP handshake analysis
• TCP performance
• DNS troubleshooting
• TLS troubleshooting
• QUIC
• VoIP
• Application-specific troubleshooting

---

Quick Wireshark Display Filter Reference

---

Key Takeaways and Summary

Key Takeaways

1. Display filters control what Wireshark shows without removing packets from the capture file.
2. Capture filters and display filters use different syntax.
3. Start with a host or protocol and progressively narrow the investigation.
4. ip.addr can match either the source or destination IPv4 address.
5. The in operator makes filters involving multiple values easier to read.
6. TCP flag filters help investigate connection establishment and termination.
7. tcp.analysis.* fields represent Wireshark analysis and must be interpreted in context.
8. DNS response codes do not automatically indicate infrastructure failure.
9. HTTP information inside HTTPS normally requires decryption before application fields become visible.
10. RTP filters isolate RTP packets, while Wireshark RTP analysis tools provide quality statistics.
11. Packet captures should be correlated with other telemetry during security investigations.
12. Saved display filters make troubleshooting faster and more repeatable.

Summary

Wireshark display filters transform a large packet capture into a focused troubleshooting view.

Instead of manually examining thousands of packets, you can progressively isolate:

• A host
• A conversation
• A protocol
• A TCP condition
• A DNS failure
• A TLS handshake
• An application request

The goal is not to memorize every available Wireshark field.

A better approach is to follow a repeatable troubleshooting process:

Identify the endpoint, select the protocol, isolate the conversation, analyze transport behavior, inspect the application, and correlate the evidence.

Once this workflow becomes familiar, Wireshark becomes much more than a packet viewer. It becomes a powerful tool for structured network troubleshooting, security investigation, and protocol analysis.

---

Useful Links and References

SanchitGurukul Static Resources

Official External References
